Open-Standard Business Messaging
in 5000 lines of Erlang

Matthias Radestock
Tony Garnock-Jones

LShift Ltd.


  • Welcome
  • introduce Tony, me - role, affiliation
  • We developed a product called RabbitMQ, a business messaging broker written in Erlang/OTP
  • Contents: our experience, why Erlang/OTP


  • Introduction to the AMQP business messaging standard
  • Introduction to RabbitMQ - our implementation of AMQP in Erlang
  • main focus is answering the question "What did make Erlang/OTP a good choice for implementing RabbitMQ?"
  • RabbitMQ Roadmap

The Advanced Message Queueing Protocol

The Open-Standard Protocol
for Business Messaging

started: 2004, first version: June 2006, latest version: February 2008


objective best illustrated by contrasting with another form of messaging: email

Everyone uses email without thinking, so why is commercial business messaging - getting applications to talk to each other - so hard?

With email we have ...

  • ubiquitous substrate - email infrastructure is part of the internet fabric; it's supported by backbone, ISPs, your corp IT departments
  • products - email clients, networking kit, spam filters
  • applications - integral to many solutions (e.g. stuff LShift have built in web space); web forms, monitoring, bug trackers, ordering systems

We have none of these in business messaging. Instead one has to undertake a development and integration project every time you want to make two applications talk to each other, not to mention trying to do that across organisational boundaries.

Imagine what it would be like to use email if you had to do undertake a major development project every time you wanted to send an email to an organisation that you hadn't dealt with before.

Yet this is exactly the situation we are in with business messaging!

Essentially what has been missing is an open, standard protocol that caters for the bulk of business messaging use cases and gets widely adopted.

AMQP aims to be exactly that.

in development for ...

more information at ...

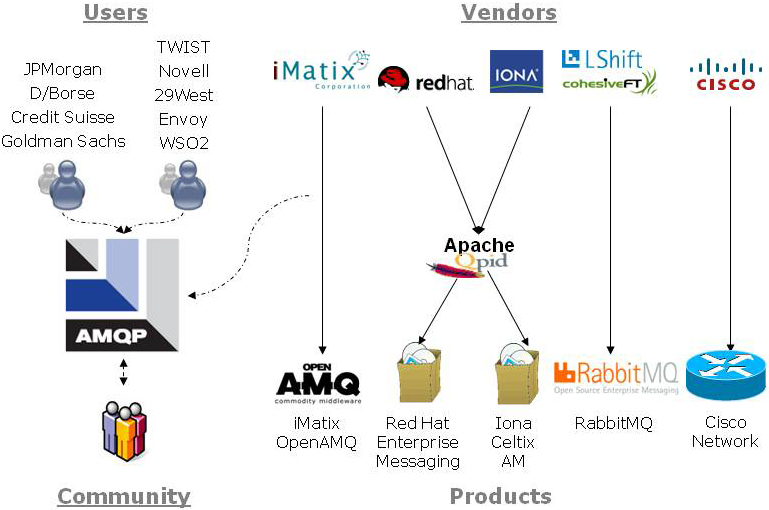

AMQP Working Group

AMQP is governed by the working group, consisting of two kinds of members...
  • vendors that produce products which implement AMQP (more about what exactly that means in a second)
  • two groups of users - end users who develop and deploy AMQP-based solutions and OEMs who embed/utilise AMQP in their products and solutions.
  • plus some feedback from wider community

AMQP Model

on to the technical bit...

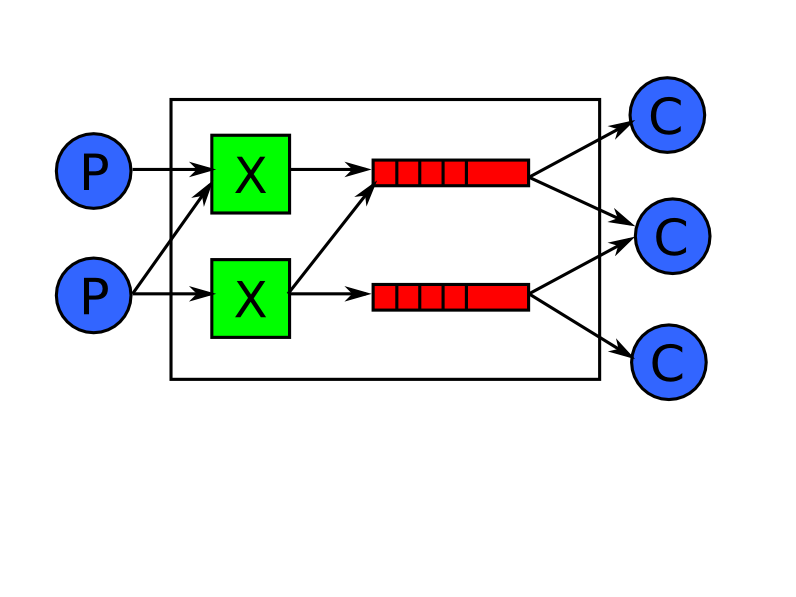

Model - AMQP's take on the world of business messaging

  • the server (aka broker)
  • producer
  • exchange
  • binding - routing based on x type and binding
  • queue - where messages live until consumed, possibly persisted
  • consumers - pull vs subscribe & push

The 'P' in AMQP

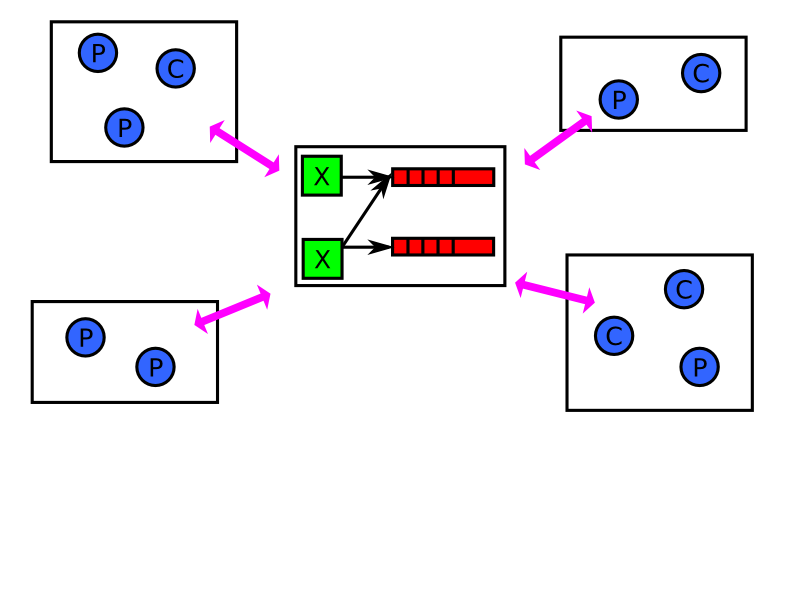

The P in AMQP

  • producers and consumers are logically part of AMQP clients
  • which talk to AMQP server
  • over the P in AMQP

Model and Protocol

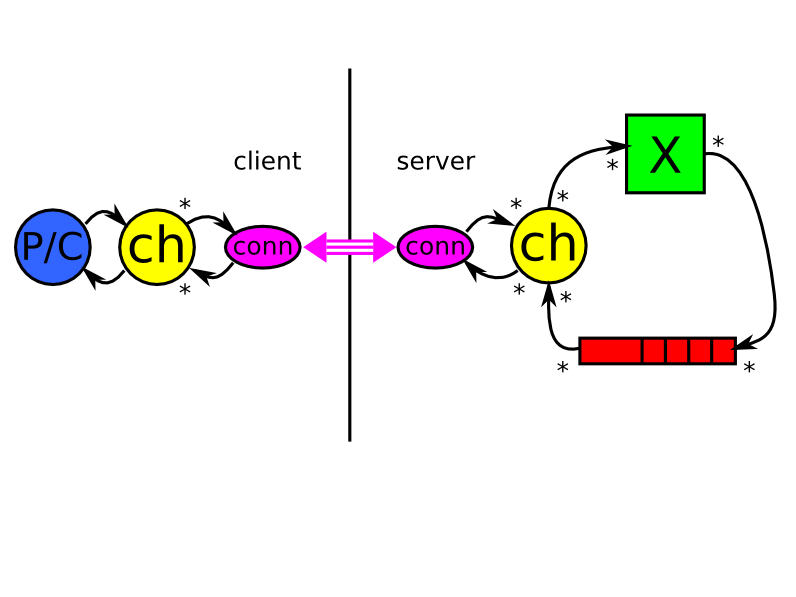

introducing two more concepts: connections and channels
  • connections - tcp connections
  • channels - multiplexing logical streams of commands and data
  • channels are boundary between model and protocol
  • soup of exchanges, queues and bindings - i.e. the routing set up, management of which is part of protocol - unlike email


An Open-Source Implementation of AMQP in Erlang/OTP

written by ourselves, i.e. LShift, in a joint venture with CohesiveFT

RabbitMQ History and Objectives

  • first AMQP implementation to be written from scratch from the spec - all others were written by folks involved in the initial specification process and during that process
  • thus RabbitMQ validates the spec; proof that it can be implemented and interop can be achieved
  • scalable - in several different ways, multi-core, cluster (more about that later) but also size of hardware - phone, slug - 16-way Intel.
  • extensions are one area where RabbitMQ really shines ...see next slide

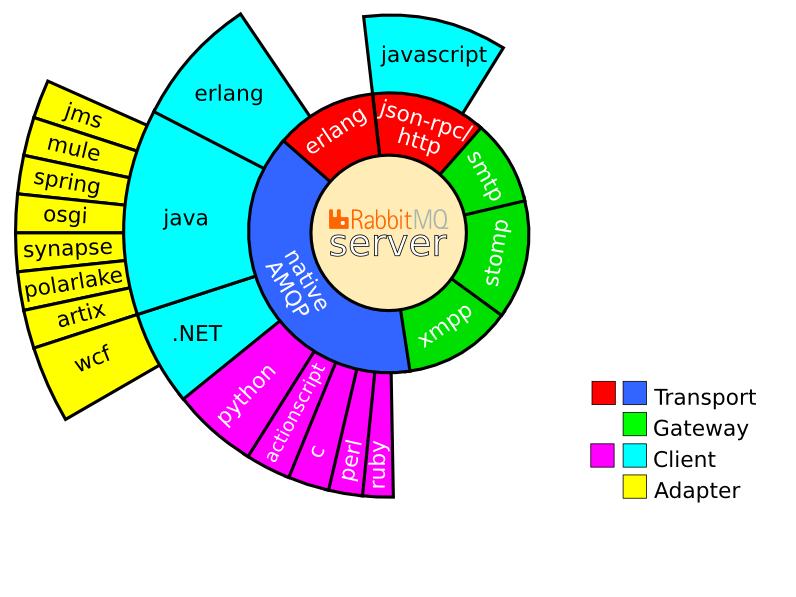

RabbitMQ Universe

  • native AMQP handler
  • transports - extensions of the RabbitMQ server that expose the AMQP protocol over transports other than raw TCP/IP. Sometimes accompanied by client libraries.
  • gateways - extensions of the RabbitMQ server that bridge between AMQP and various other messaging networks
  • clients - These conform to the client role of the AMQP protocol and generally interoperate with other AMQP brokers. light blue - developed for RabbitMQ, but work with other brokers, pink bits - developed by community, not necessarily for RabbitMQ
  • dual role of Erlang client
  • adapters - These adapt various messaging abstraction, most of them ESBs, to AMQP. They are typically implemented on top of one of the AMQP client libraries, but they do not expose the AMQP functionality directly.
Rest of talk is mainly going to focus on the server with the native AMQP transport, so just bear in mind that there is a lot more to RabbitMQ than the server.

Why Erlang/OTP?

Why Erlang/OTP?

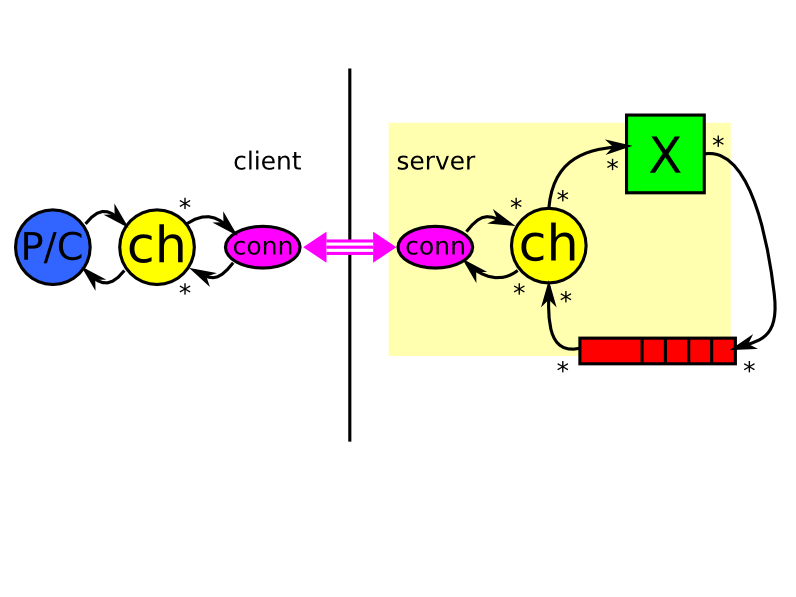

AMQP architecture (revisited)

  • concentrate on server for rest of the talk
  • similarities between structure of client and server, in particular when it comes to protocol handling

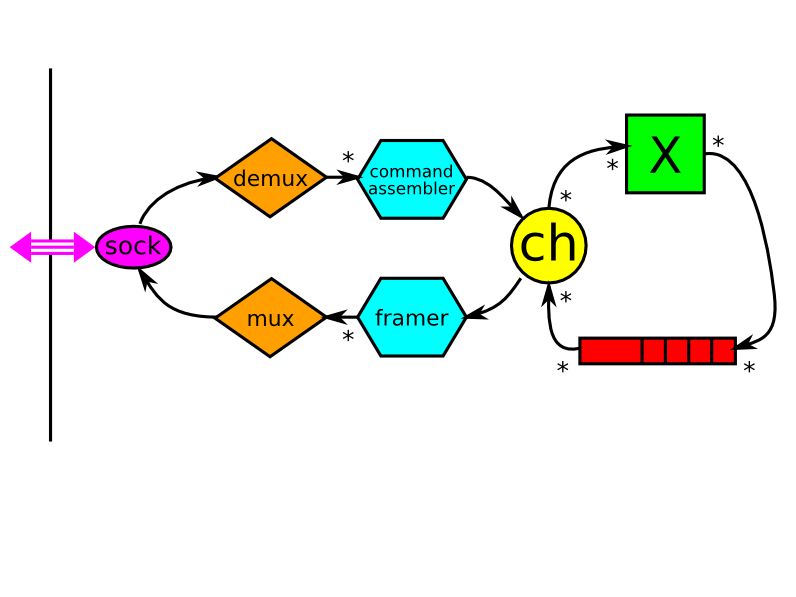

AMQP architecture (refined)

  • refine relationship between connection and the channels it carries
  • introduction of framing - AMQP commands (create queue, delete queue, publish message, etc) are chopped up into frames for interleaving on transport - useful for e.g. large messages

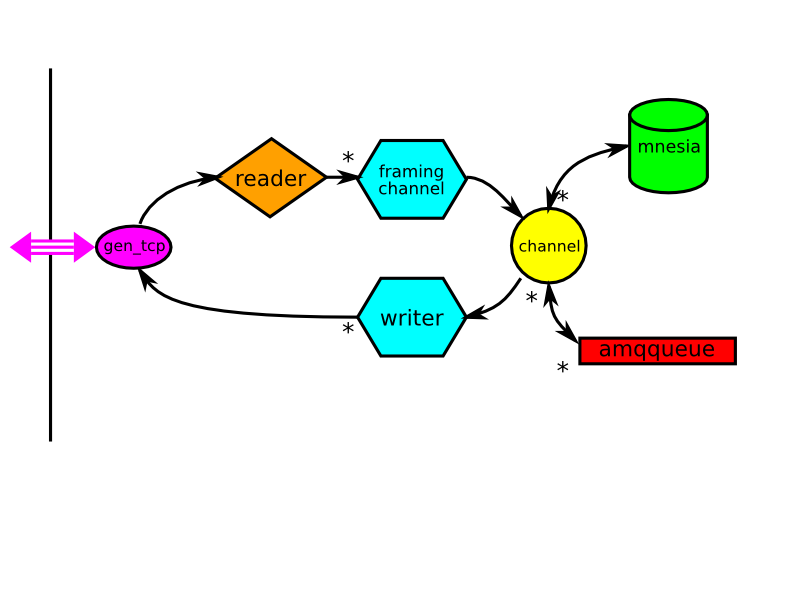

RabbitMQ server design

  • domain of discourse of AMQP is very simiilar to Erlang/OTP
  • actual implementation is identical to architecture
  • each of the nodes corresponds to a separate Erlang module, and process (taking into account the multiplicities)
  • only two minor exceptions - mux, which is handled as part of gen_tcp, and mnesia, which is a collection of processes

Why Erlang/OTP?

quick summary of previous few slides:
  • very natural mapping from the AMQP logical architecture to the Erlang-based design of RabbitMQ
  • naturalness of the mapping results in small, readable codebase where there is a direct correspondence between AMQP features and code fragments
  • this makes the code easy to understand, modify and extend - keep up with evolution of spec, try experimental features, build extensions (recall that this is a major focus for RabbitMQ)
  • success story - Erlang novices in the community have built small extensions
  • So how small is the code base, really? Here are some stats ...

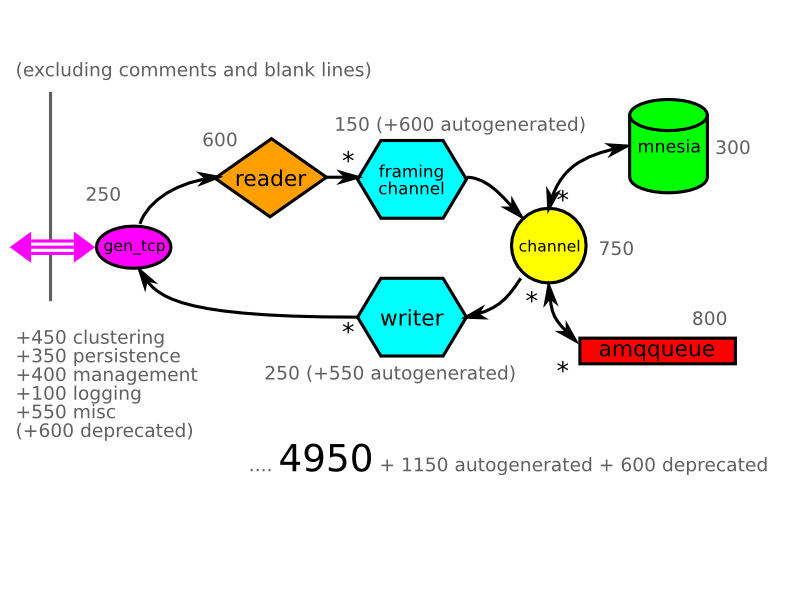

Look, it is tiny!

from left to right:
  • networking stack on top of gen_tcp - mostly generic, i.e. not RabbitMQ-specific
  • reader - dealing with AMQP connection management, demux, error handling
  • framing channel and writer - codec; mostly auto-generated from spec
  • channel, amqqueue, exchanges/routing (on top of mnesia) - the AMQP model

  • clustering - more about that later
  • persistence - messages can be stored durably on disc and surivive broker restarts
  • management - CLI for administering RabbitMQ
  • deprecated code is realms and tickets; will disappear from spec soon
summary - ~5000 LOC
but this is not just down to the naturalness of the mapping between the AMQP architecture and RabbitMQ design. Erlang language features play a big part too. Some examples of that next ...


                F1Len:8/unsigned, F1:F1Len/binary,
                F2Len:8/unsigned, F2:F2Len/binary,
                F3Bits:8>>) ->
    F3 = (F3Bits band 1) /= 0,
    F4 = (F3Bits band 2) /= 0,
    #'basic.publish'{ticket      = F0,
                     exchange    = F1,
                     routing_key = F2,
                     mandatory   = F3,
                     immediate   = F4};

even shorter in R12

This is some of the auto-generated code; decoding an AMQP method frame into an Erlang data structure
  • length prefixed strings
  • bits (which is what gets shorter in R12)

It is hard to see how this could be any more concise.

AMQP has 87 methods - yet the auto-generated codec - for both decoding and encoding is only 1150 LOCs; that's just 13 LOCs per method.

Going the other way - packing terms into a binary blob, rather than unpacking - uses exactly the same syntax, and is just as smooth.

List Comprehension and HOF

upmap(F, L) ->
    Parent = self(),
    Ref = make_ref(),
    [receive {Ref, Result} -> Result end
     || _ <- [spawn(fun() -> Parent ! {Ref, F(X)} end)
              || X <- L]].

  • While a lot of code for a presentation, it is not a lot for what it does!
  • upmap - unordered parallel map
  • safe_pmap_set_ok - use upmap to build a higher level tool for distributed programming

Why Erlang/OTP?

half-way point - before moving on to the next factor that lead us to choosing Erlang/OTP, a quick break for questions

deals with concurrency arising naturually from AMQP really well

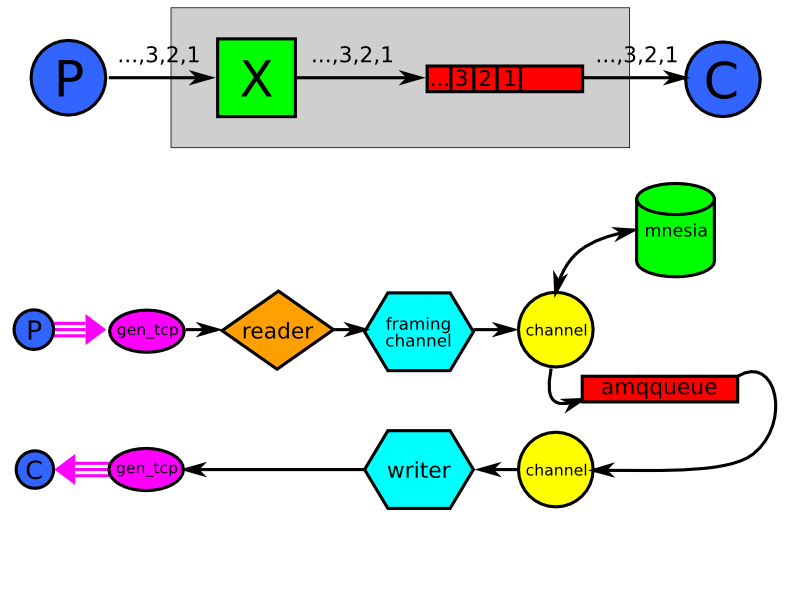

order preservation

  • AMQP stipulates end-to-end preservation of order in the simple case a producer sending messages to a consumer via a single exchange and queue
  • Erlang ordering guarantee: order of messages is preserved between any pair of processes
  • This gives us the AMQP ordering guarantees for free; even though all messaging is asynchronous
  • flow of messages through the system, with order-preserving buffering at various stages

effect visibility guarantees

warning - this is quite detailed and technical

One area that requires careful handling though is controlling the visibility of effects of commands, i.e. when a client issues a command and gets a reply, it subsequently shouldn't receive any data that is inconsistent with that command having been completed.

That all sounds fairly complicated and theoretical, so here is a concrete example

If you were consuming from a queue, and you've decided to cancel that subscription, the server better not send you any messages after it's told you that you've been unsubscribed.

gen_server's calls use selective receive - the only way of reordering Erlang's buffered messages!

The problem here is that the channel made a synchronous call to the queue. The cancel-ok reply ends up overtaking the deliver.

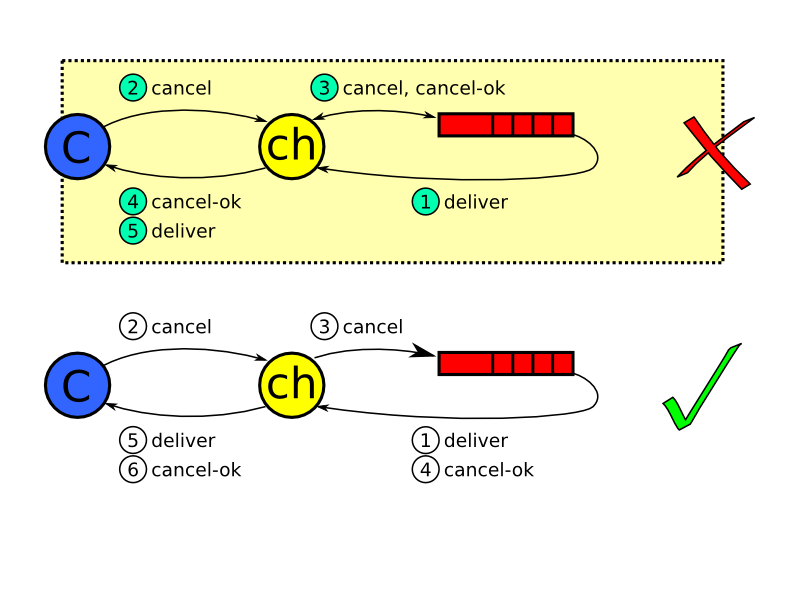

effect visibility guarantees

The solution is to ditch the synchronous call in favour of asynchronous communication. This is a pretty common thing to do in Erlang.

This is easily done in Erlang, even though it does make the code slightly more complicated

Now the ordering between deliver and cancel-ok is preserved

Why Erlang/OTP?

quick recap of reasons so far for using Erlang/OTP in RabbitMQ

  • good architectural fit with AMQP
  • small code base due to fit + Erlang features
  • nice way handling of AMQP concurrency by Erlang/OTP

Another major reason for using Erlang/OTP is that it has been designed for building highly reliable systems

In part this is due to Erlang/OTP features such as process linking and supervision hierarchies

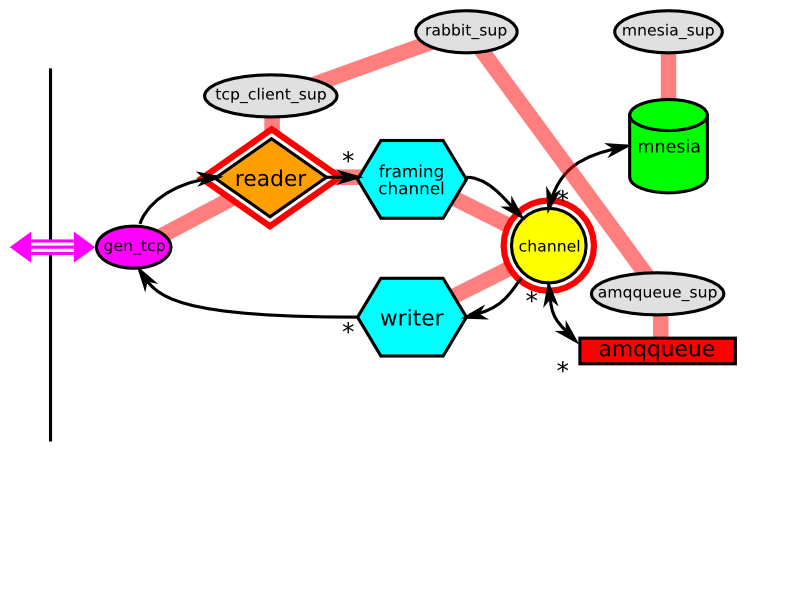

Links, exit traps, and supervisors

  • noticing death
  • cleaning up
  • if possible, restarting
  • groups of processes that live and die together - around channel, around reader

Why Erlang/OTP?

Exploiting Parallelism

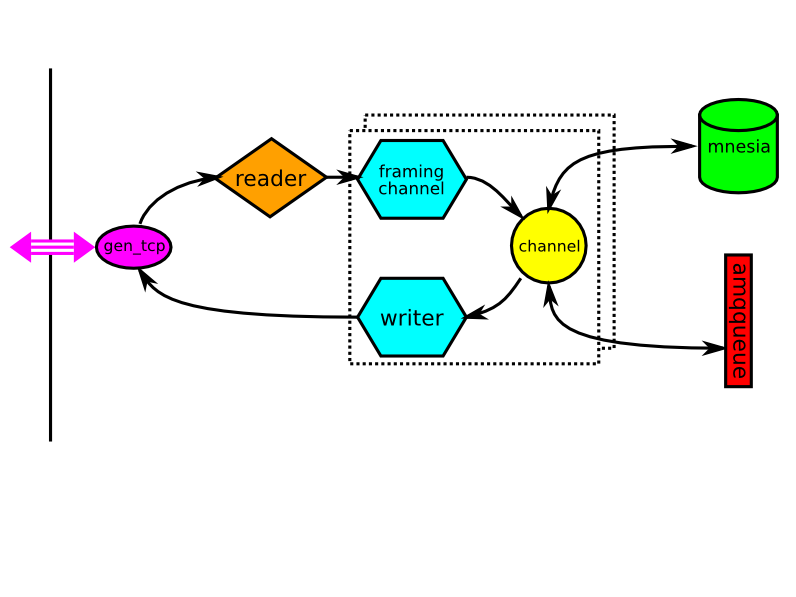

three different areas of parallelism that arise naturually from AMQP and that RabbitMQ is exploiting
  • 8-stage pipeline end-to-end between producer and consumer
  • parallelism across connections and channels - with queues acting as synchronisation points (queues are about the only stateful part of the core AMQP model)
  • queues as active processes

Clustering - Logical View

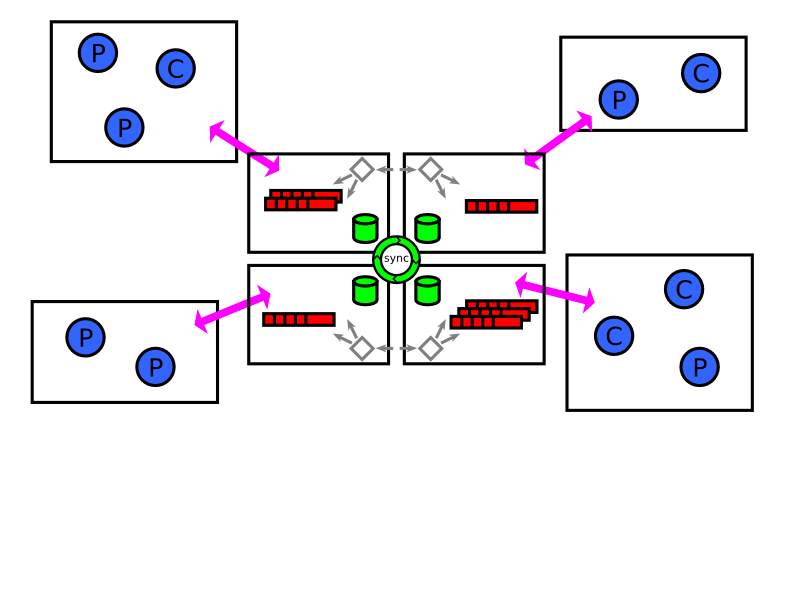

Clustering - Realisation

Why Erlang/OTP?

  • for free, almost
  • the Erlang shell in conjunction with the myriad of OTP tools to inspect, trace, profile, debug, modify a running system
  • augmented by our own command line tools
...on to some examples of both...

Where has all the memory gone?

(rabbit@t)1> [{_, Pid} | _] =
                   [{process_info(P, memory), P}
                    || P <- processes()])).
[{{memory,16434364},<0.160.0>}, ...]
(rabbit@t)2> process_info(Pid, dictionary).
         {resource,<<"/">>,queue,<<"test queue">>},
just tell the story

Setting up a RabbitMQ cluster

rabbit2$ rabbitmqctl stop_app
Stopping node rabbit@rabbit2 ...done.
rabbit2$ rabbitmqctl reset
Resetting node rabbit@rabbit2 ...done.
rabbit2$ rabbitmqctl cluster rabbit@rabbit1
Clustering node rabbit@rabbit2 with [rabbit@rabbit1] ...
rabbit2$ rabbitmqctl start_app
Starting node rabbit@rabbit2 ...done.

rabbit2$ rabbitmqctl status
Status of node rabbit@rabbit2 ...
don't talk through it

Why Erlang/OTP?

You do not need to know anything about Erlang to use RabbitMQ

Making Erlang disappear

  • two aspects - one to do with the protocol, the other with the operational side
  • users write client code, typically using one the available broker-neutral libs; they don't need to care what the server is written in
  • one still needs to get a server up and running, configure it and look after it. Need to hide Erlang there too. Hence ...

Why Erlang/OTP? - Summary

protocol handling is an Erlang/OTP sweet spot

don't go through list! just mention sweet spot

What next for RabbitMQ?


don't go through list!

try it - we also have a public server running; join the mailing list to report any problems, suggestions
